PRO-CLAMP Heavy

PRO-CLAMP Heavy is especially used for carousels/boring mills and can be expanded to large diameters.

PRO-CLAMP Heavy

PRO-CLAMP Heavy is mainly used for carousels/boring mills and can be expanded to large diameters. The very sturdy construction ensures a large and uniform clamping force of up to 20 ton. The structure of the body, without holes, ensures quick and easy removal of chips, as well as a very fast changeover time - at the most 10 seconds per vice.
PRO-CLAMP Heavy

Datasheet PRO-CLAMP Heavy

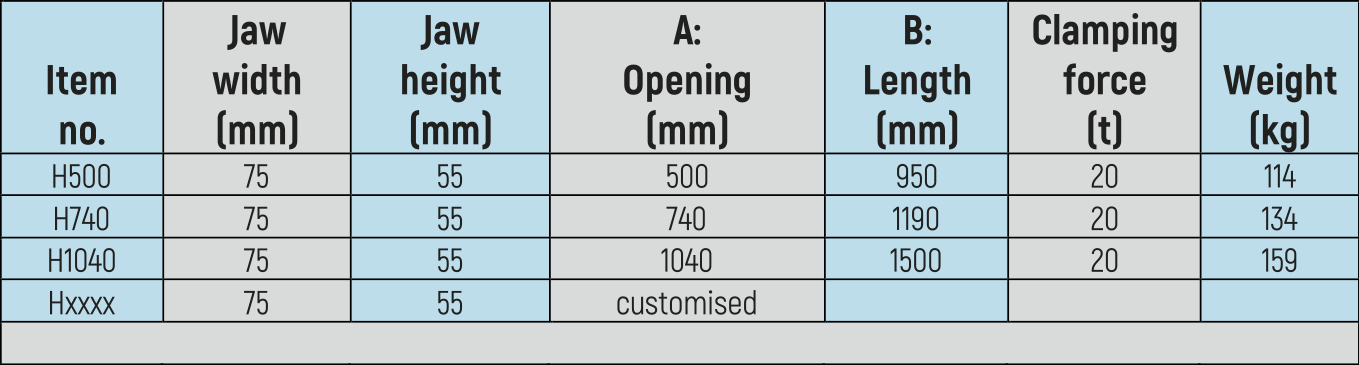

PRO-CLAMP Heavy data sheet

Features of PRO-CLAMP Heavy

  • Used for Carousel/boring mills
  • Clamping device can be rotated 180 degrees
  • Span standard up to 1040 mm
  • Spindle travel 80 mm
  • Can be adapted to specific customer requirements
